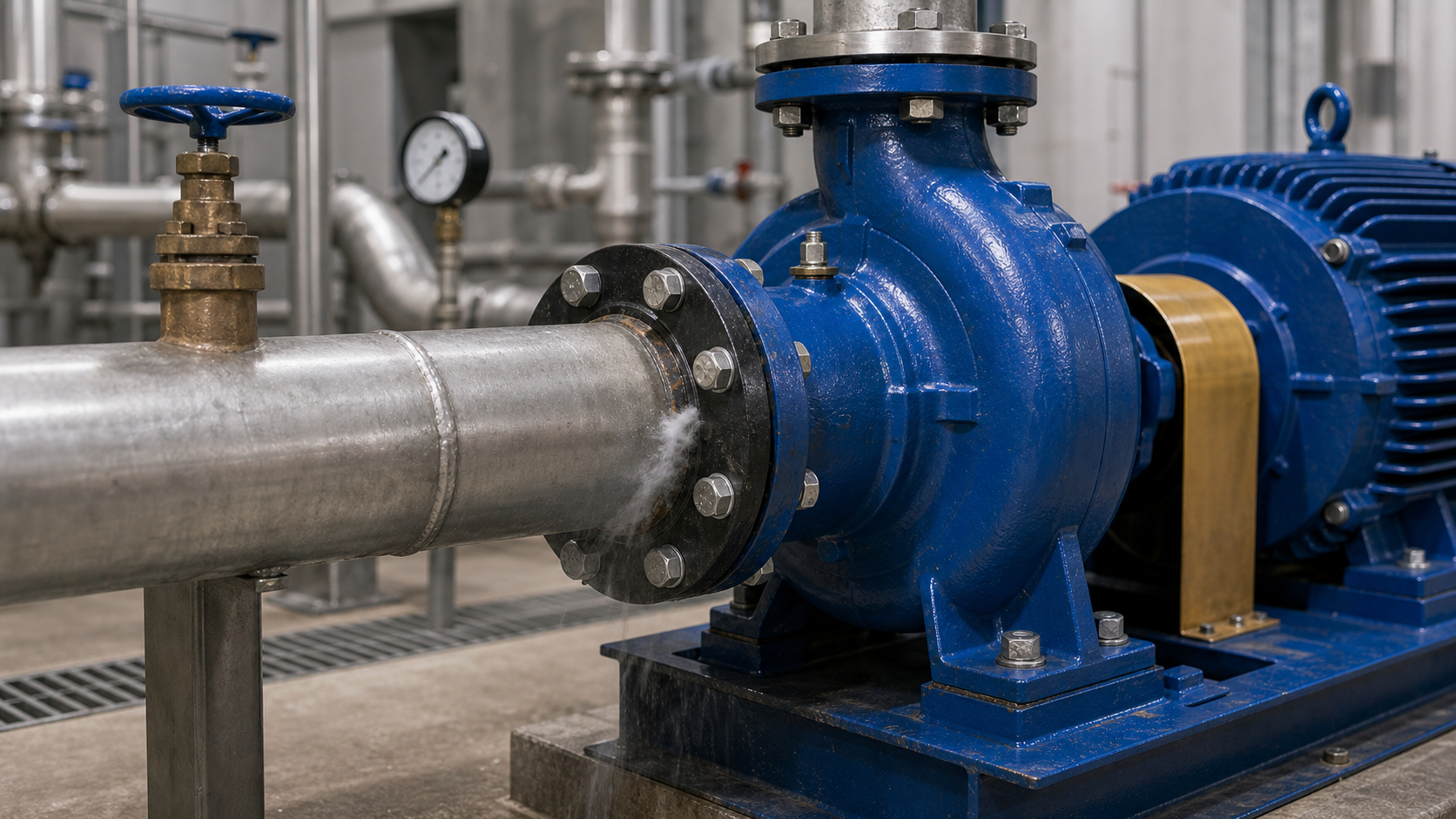

Suction Piping Air Leaks On Above-Grade Pump Systems
Above-grade pumps depend on a sound suction path. When air leaks into that piping, the pump may lose prime, become noisy, or deliver inconsistent flow even though no obvious water leak is visible. That is because suction-side leaks often pull air inward instead of pushing water outward.
This is a common source of confusion on domestic water, irrigation, process, and transfer systems where the pump sits above the source or where the suction lift margin is limited.
Why Small Air Leaks Cause Big Operating Problems
A suction leak does not have to be large to create trouble. Air entering through a loose fitting, bad gasket, threaded joint, valve stem, or deteriorated suction hose can interfere with the pump's ability to maintain a solid liquid column. Once that happens, the pump may rattle, surge, or lose capacity.
Property teams often notice:
• Delayed prime after startup.
• Intermittent flow or pressure drop.
• Air bubbles or cloudy water downstream.
• Noise that sounds like gravel, rattling, or surging.
• A pump that works acceptably for a while and then loses performance.
These symptoms are easy to confuse with worn impellers, clogged strainers, or electrical issues if the suction side is not inspected carefully.
The Leak May Not Show Water
Because the suction side can run below atmospheric pressure while the pump is operating, the leak point may not drip water in a way that is easy to see. A joint can look dry and still admit enough air to create a major problem. That is why troubleshooting should include the full suction path, not just the pump casing.
Technicians often inspect:
• Threaded joints and flange gaskets.
• Foot valves and check valves on the suction line.
• Suction strainers and basket seals.
• Valve packing and stem leakage points.
• Hose connections on temporary or auxiliary systems.
Repeated Repriming Usually Means Something Changed
If a pump that used to hold prime now needs frequent repriming, the system should be checked for a suction leak, a failing foot valve, or a change in water level that reduced the available suction condition. Treating repeated prime loss as normal usually leads to more downtime and more aggressive wear inside the pump.
When To Schedule Service
Schedule service when an above-grade pump loses prime repeatedly, flow surges, air shows up in the discharge, or suction-side fittings are suspected after recent maintenance. Finding the leak early helps avoid seal damage, overheating, and unreliable service.
RMS Pump services above-grade pump systems, suction piping issues, prime-loss problems, and commercial water movement equipment across Oregon and Washington.
