Reading Pump Curves For Commercial Pump Decisions

By RMS Pump Inc. • Pump service across Oregon and Washington

A pump curve is one of the most useful tools for understanding whether a pump fits the system it serves. It shows the relationship between flow and head, and it helps explain why a pump may be quiet and efficient in one building but noisy, inefficient, or unreliable in another.

For property managers and maintenance teams, the important point is simple: a replacement pump should not be selected by horsepower alone. The pump has to match the system's required flow, pressure, piping, controls, and operating range.

Flow And Head

Flow is how much liquid the pump moves. Head is the energy the pump adds to move that liquid through elevation changes, pipe friction, valves, coils, strainers, heat exchangers, and equipment. In many field conversations, head is converted into pressure, but the curve is usually presented as head versus flow.

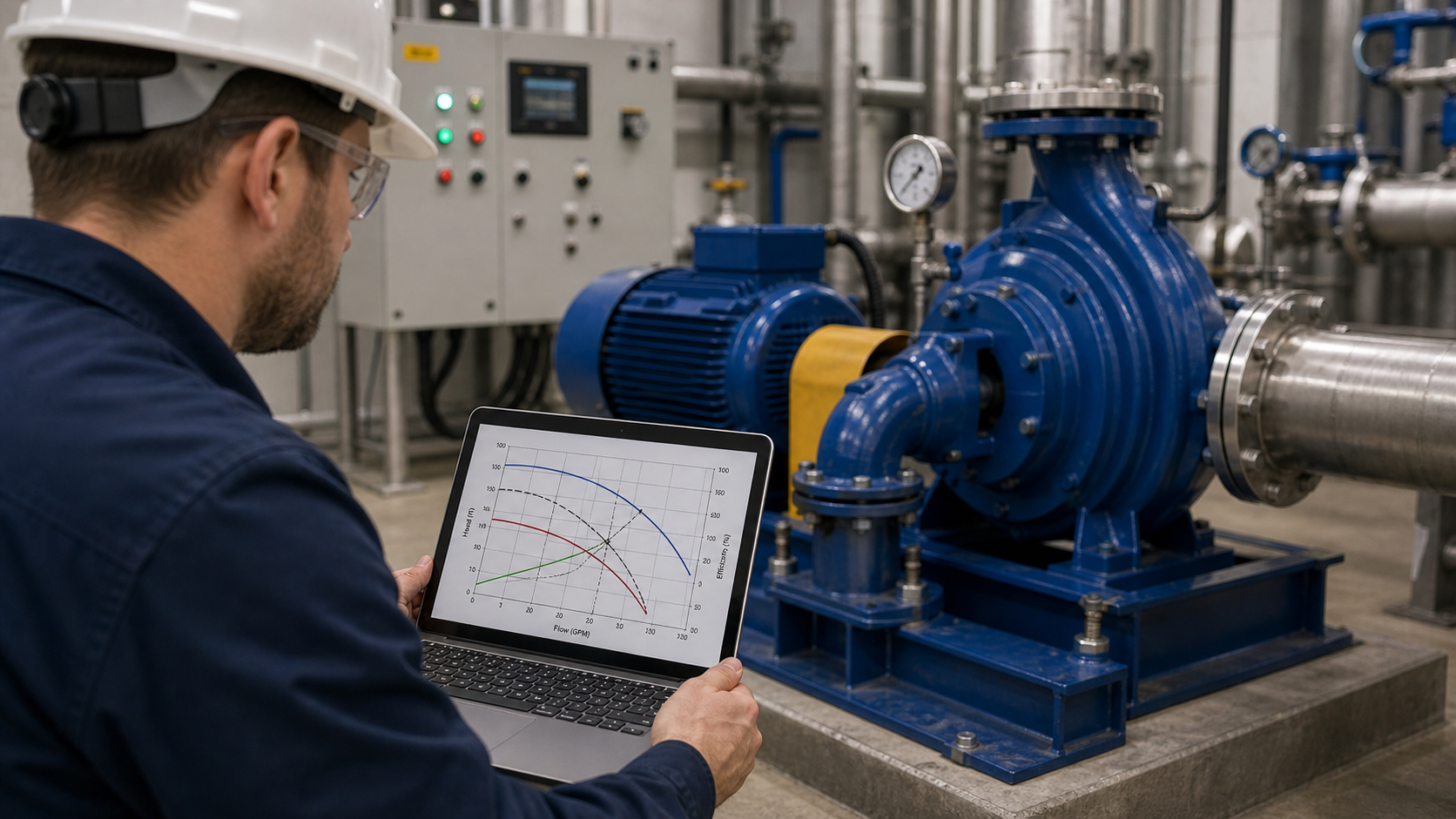

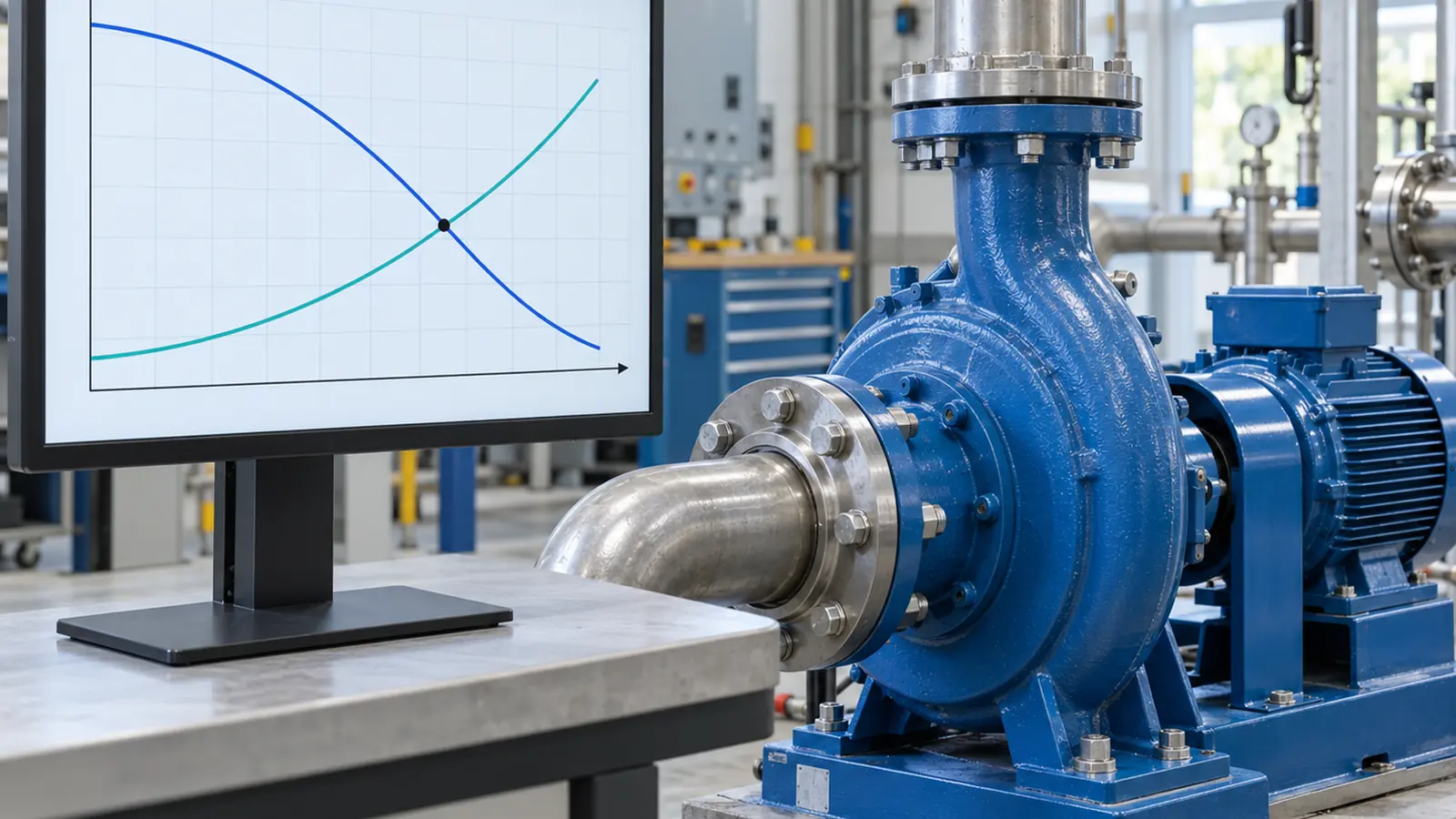

As flow increases, the head available from a centrifugal pump usually decreases. That relationship is the pump curve. The system also has a curve. As flow increases through the building piping, friction losses increase. The pump operates where the pump curve and system curve meet.

Why The Operating Point Matters

If the operating point is too far from the pump's intended range, the system may see problems such as vibration, cavitation, low flow, high energy use, repeated seal failures, or unstable pressure. A pump that is too large can be just as problematic as a pump that is too small.

The best efficiency point is not the only acceptable operating point, but it gives a useful reference. Pumps usually perform best when they operate within a reasonable range around that point. Running far left or far right on the curve can create reliability problems.

What Changes The System Curve

The system curve is not fixed forever. It can change when strainers plug, valves are throttled, piping is modified, coils foul, heat exchangers scale, tanks lose pressure, or controls are adjusted. A pump that once performed correctly may look wrong after the system changes around it.

That is why troubleshooting should include field readings. Suction pressure, discharge pressure, flow where available, valve positions, VFD speed, amperage, and temperature conditions can all help compare the real system to the expected curve.

VFD Systems Still Need Curve Review

A VFD can adjust speed, save energy, and stabilize pressure, but it cannot make the wrong pump the right pump in every condition. At very low speeds, some pumps may not develop enough head. At high speeds, a pump may move into an inefficient or unstable range.

Controls should be reviewed with the curve, not separately from it. Setpoints, minimum speed, sleep mode, staging, and lead-lag behavior affect where the pump operates.

Replacement Decisions

When replacing a pump, review the original design intent, current building demand, measured field conditions, and the curve for the proposed replacement. Matching pipe size and horsepower is not enough. Impeller diameter, speed, flow range, head, efficiency, NPSH requirements, and motor load all matter.

If the old pump failed repeatedly, do not assume the same model is the right answer. The failure pattern may be telling you the pump was operating in the wrong part of the curve.

When To Bring In Service

Schedule a pump curve review when a pump cannot meet demand, vibrates, cavitates, runs hot, fails seals repeatedly, or is being replaced after a long service life. Curve review is especially important when the building load, controls, or piping have changed since the original installation.

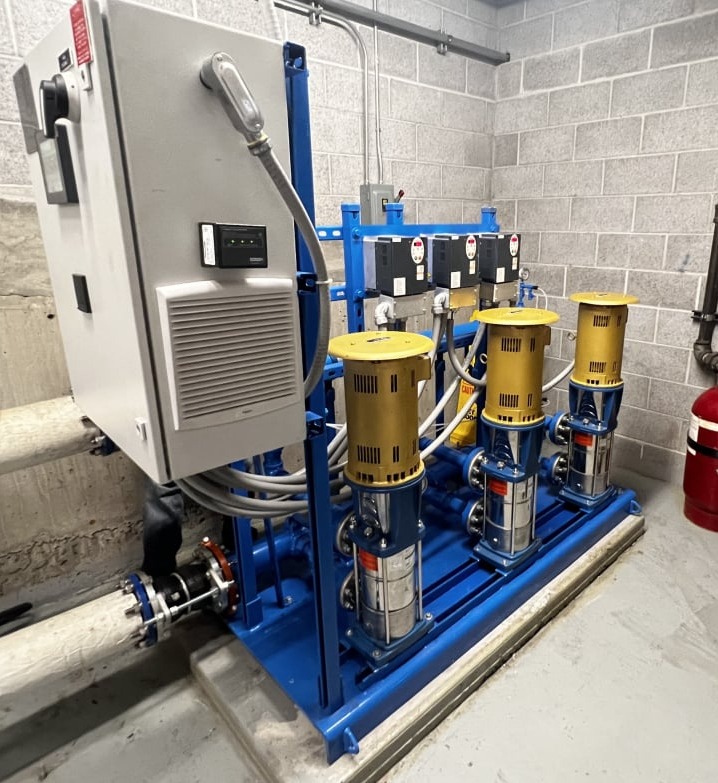

RMS Pump helps commercial customers troubleshoot pump performance, evaluate replacement options, and service booster, hydronic, condenser water, sewage, and municipal pump systems across Oregon and Washington.
